 Hobbs Patent Protector Lock

The Parautoptic Lock
Hobbs Anti Violence Lock

Hobbs Safe Plates

Hobbs Library Items
Hobbs / Milner Protector Lock
Hobbs protector with anti Goater vanes
Hobbs protector with anti Goater vanesHobbs protector with anti Goater vanes

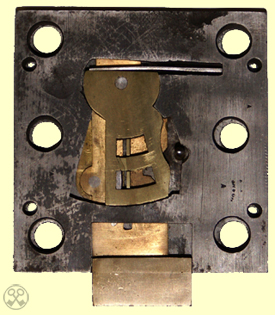

Early Hobbs/Milner Protector lock with vanes guarding the moveable bolt stump which were introduced to defeat Goaters method of opening.

Serial number: 20751. Size: 95mm x 121mm. 6 lever. c. early 1850's.

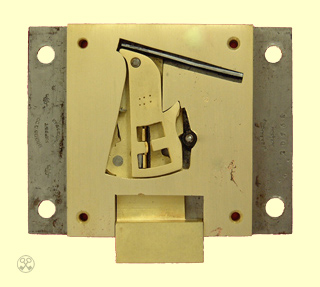

Here we see the emergence of the familiar Milner 6 bolt fixing block type lock. This example still retaining the Goater vanes.

Serial number: 42681. Size 92mm x 95mm. 6 lever. c 1865.
ToP

Hobbs Square Protector Lock
Hobbs protector with anti Goater vanesHobbs protector with anti Goater vanes
Hobbs protector with anti Goater vanesHobbs protector with anti Goater vanes

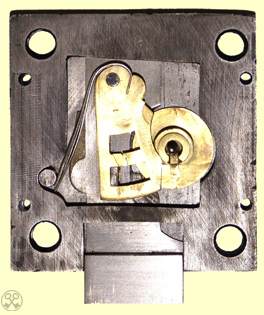

The addition of the second protector patent, i.e. the nozzle protector, ment that the Goater vanes could be dispensed with as there was no longer access to the bolt stump.

Serial number: 20028. Size: 91mm x 94mm. 7 lever. c. .

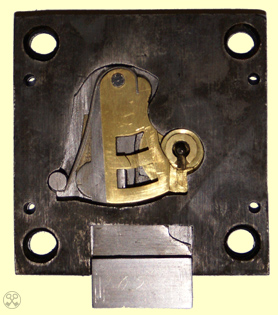

A fully gunpowder proof lock. The solid block has venting holes and chanels and the bolt head has two holes drilled through, again to vent explosive gases

Serial number: 42681. Size 92mm x 95mm. 8 lever. c .
ToP

Hobbs Rectangular Protector Lock
Hobbs 9 lever Patent protector Hobbs 9 lever Patent protector, internal layout Hobbs 9 lever Patent protector, bolt detail
Hobbs Patent Protector 9 lever gunpowder-proof lock. This lock incorporates both the anti-pressure Protector Patent and the nozzle protector patent. The lack of holes in the bolt end indicates that its post 1918.

Size: 92mm x 129mm.
ToP

Hobbs Double Stump Protector Lock
Hobbs 9 lever double gated lock
A pair of Hobbs Patent Protector 9 lever double gated gunpowder proof locks, one left hand and one right hand from the same strongroom door. This lock also incorporates both the anti-pressure Protector Patent and the nozzle protector patent. Additionally levers 2, 4, 6 and 8 are elongated and incorporate an additional pocket which aligns to another, but fixed bolt stump. The keys, which are original, are marked with a serial number of 26606. Additionally there is a 1 stamped on the bit of the key for the left hand lock and a 2 similarly marked on the key for the right hand lock. These locks are representative of Hobbs workmanship at its finest.

Size: 92mm x 129mm. c.1900 - 1910.
ToP


Hobbs Protector Patents

Hobbs / Milner Protector Locks
Hobbs square protector Lock
Hobbs retangular protector Lock
Hobbs double stump protector Lock




ToP
 Page 1 of 1 Page for Hobbs Patent Protector Lock
